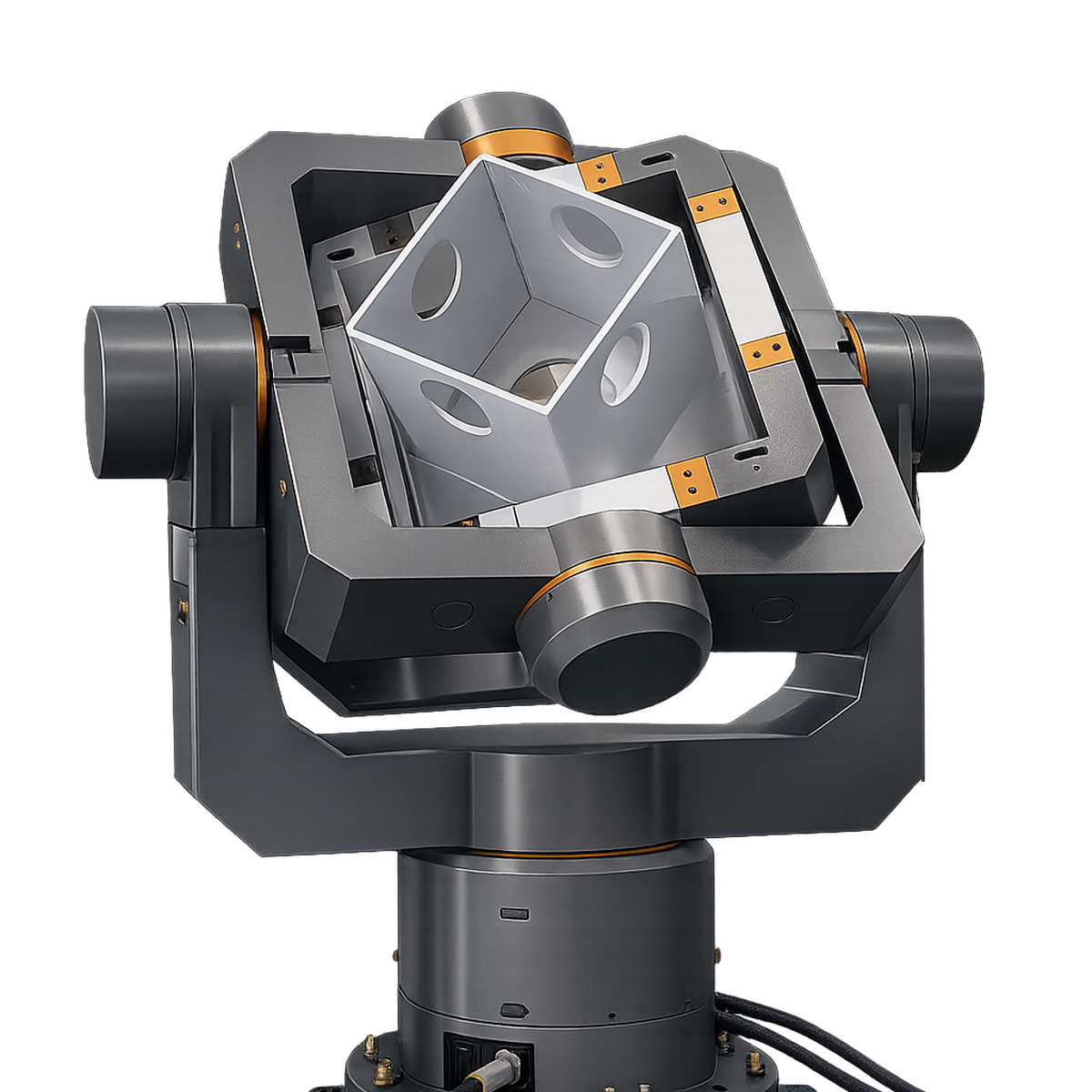

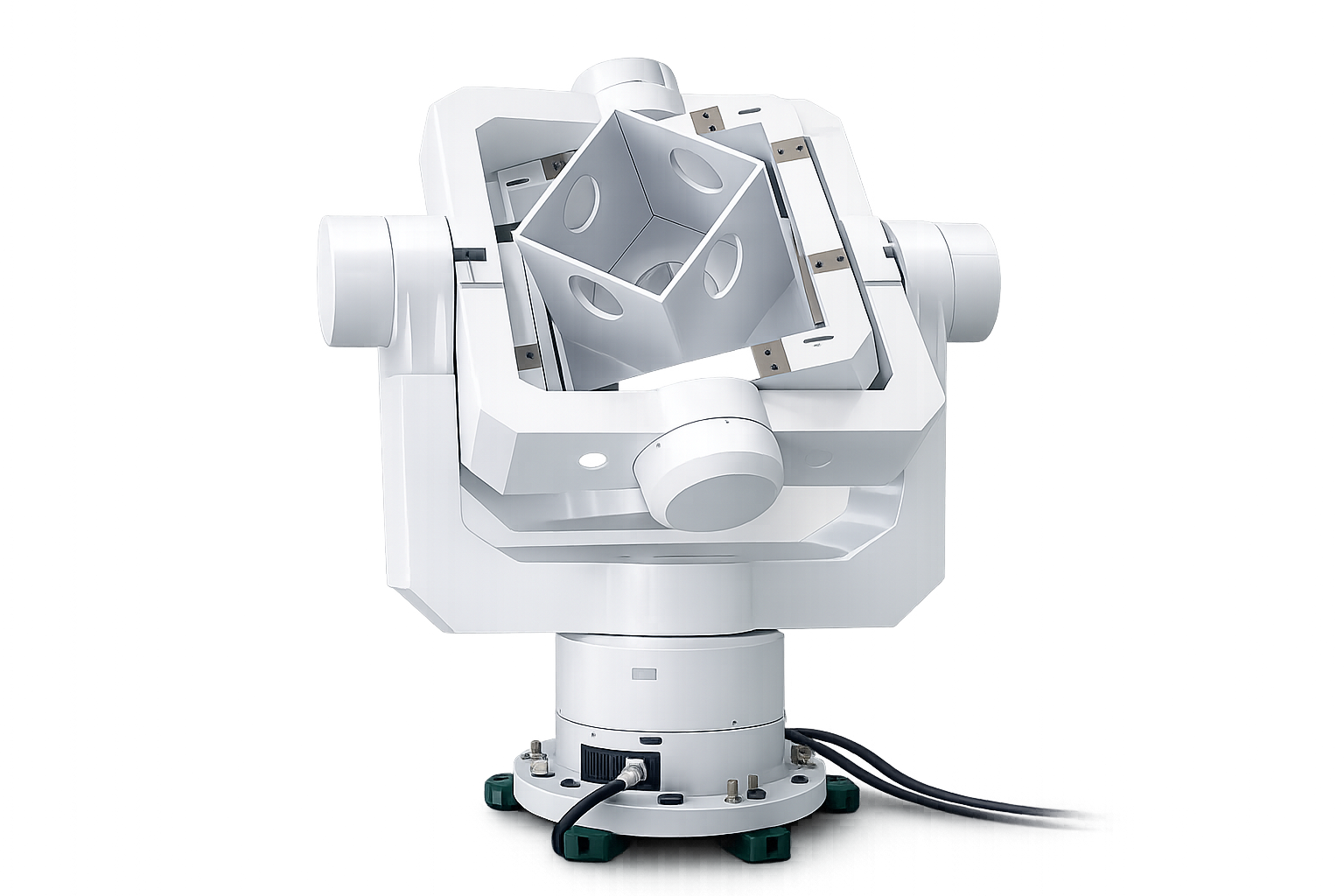

SWJK-A3-60 High-Precision Three-Axis Turntable
The SWJK-A3-60 is a high-precision three-axis motion simulation test system designed for inertial systems, inertial components, electro-optical payloads, and stabilized imaging platforms.
With precise three-axis motion control, servo simulation, and dynamic performance validation capabilities, the system provides a reliable test platform for aerospace, defense, research, and precision engineering applications.
Description
The SWJK-A3-60 High-Precision Three-Axis Turntable is a multifunctional simulation test system available in U-U-T or U-O-O configurations. Driven by electric motors and equipped with photoelectric encoders and a computer-based control system, it supports position, rate, sway, simulation, and servo functions.
The system is designed to meet comprehensive testing requirements for inertial systems, inertial components, and optical payloads. It delivers stable dynamic performance, excellent residual unbalance tolerance, convenient load handling, user-friendly software operation, and RS422-based remote control and data transmission.
Key Features
- Three-Axis Motion Simulation
Provides accurate three-axis attitude motion simulation for inertial and optical payload testing. - High-Precision Positioning
Delivers precise angular positioning and repeatable motion performance for demanding validation tasks. - Servo & Simulation Functions
Supports servo testing, motion simulation, and dynamic response evaluation under complex operating conditions. - Photoelectric Encoder Feedback
Equipped with high-precision photoelectric encoders for reliable motion feedback and control accuracy. - Excellent Load Handling
Designed with strong residual unbalance tolerance and convenient load installation for engineering test environments. - RS422 Communication
Supports remote control and data transmission through RS422 interface for efficient system integration.
Applications
- Inertial Navigation System testing and calibration
- IMU performance validation
- Gyroscope and accelerometer dynamic testing
- Three-axis attitude motion simulation
- Electro-optical pod testing and validation
- Stabilized imaging platform performance evaluation
- Servo system dynamic performance testing
- Signal processing performance research
- Aerospace and defense payload simulation
- Inertial component qualification and acceptance testing
FAQ
Why Choose SWJK-A3-60
Comprehensive Three-Axis Testing
Supports multi-axis motion simulation for inertial systems, optical payloads, and precision navigation equipment.
Reliable Dynamic Performance
Designed for stable motion output, accurate control, and repeatable test results.
Flexible Test Configuration
Suitable for position, rate, sway, servo, and simulation testing according to different project requirements.
Engineering-Oriented Design
Provides easy load handling, software operation, remote control, and data communication for laboratory and production environments.
Specifications
| Parameter | Specification |
| Load Capacity | 120 kg（Customizable） |
| Payload Dimension |
Φ700mm×700mm |
| Tilt Angle Rotation Error | ≤ ±2″ (all axes) |
| Axis Perpendicularity | ±2″ (middle-inner & middle-outer frames) |
| Rotation Range | Continuous unlimited (all axes) |
| Three-Axis Intersection | Within Φ0.3 mm radius sphere |
| Frame Locking | Available at 0°, 90°, and 180° for all axes |
| Slip Ring | User-defined ( customizable) |
| Operating Modes | Position, Rate, Sway |
| Angular Position Accuracy | ±2″ |
| Angular Position Control Accuracy | ±2″ |
| Angular Position Repeatability | ±1″ |
| Angular Position Resolution | 0.36″ |
| Rate Range |
Inner Axis: ±0.001°/s ~ 3000°/s Middle Axis: ±0.001°/s ~ 2000°/s Outer Axis: ±0.001°/s ~ 1000°/s |
| Rate Resolution | 0.0001°/s |
| Rate Accuracy & Stability |
1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average） |
| Maximum Acceleration |
Inner Axis: 1500°/s² Middle Axis: 1000°/s² Outer Axis: 500°/s² |
