Advanced Motion & Optoelectronic Solutions
Our Turntable with Temperature Chamber integrates precise temperature control with rate table functionality, providing a comprehensive testing solution for gyroscopes, accelerometers, and other inertial sensors. Designed for aerospace, automotive, and industrial applications, it delivers accurate measurements over a wide temperature range while maintaining minimal error. Key benefits include stable temperature performance, high testing accuracy, and easy operation.
Showing all 4 results
Load Capacity：5~150 kg(Custom Made)
Table dimension：Φ30mm~Φ1500mm(Custom Made)
Rate range: Inner axis ±0.001° ~ 3000°/s; Outer axis ±0.001° ~ 2000°/s
Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
Temperature range： -60 ℃ ～ +150 ℃

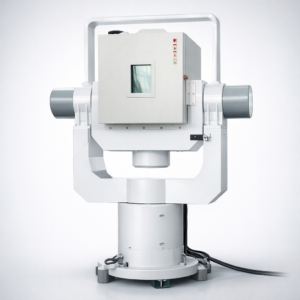

Load Capacity：5Kg~150 Kg(Custom Made)
Table dimension：Φ30mm~Φ1500mm(Custom Made)
Maximum acceleration: Inner axis 0~ 2000°/ s2, Middle axis 0~1000°/ s2 , Outer axis 0~150°/ s2
Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
Temperature range： -60 ℃ ～ +150 ℃
Load Capacity：5~200 kg
Table dimension：Φ30mm~Φ1500mm
Rate range: 0.001° ~3000°/s
Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
Temperature range： -60 ℃ ～ +150 ℃

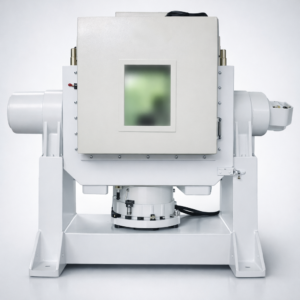

The SWJK-A2T-60 is a high-precision dual-axis U-T structure test platform combining motion simulation with high/low temperature testing. It is designed for demanding validation tasks in inertial system development, calibration, and performance testing.
