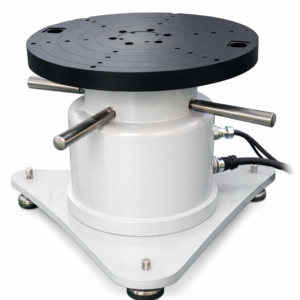

Series Single Axis Turntable
- Load Capacity：5~200 kg(Customizable)
- Table dimension：Φ30mm~Φ1500mm(Customizable)
- Rate range: ±0.001° ~ 3000°/s
- Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
Series High Precision Turntable
The high-precision electric turntable is a versatile, multi-functional simulation testing equipment, available in both single and multi-axis configurations. It features an automatic frame type design and is equipped with a variety of functions including position control, speed adjustment, swinging, and servo operations. This turntable is perfectly suited to perform comprehensive functional tests and experiments on inertial systems and components. Operated and controlled via an industrial control computer, it boasts exceptional dynamic characteristics such as highly precise positioning, stable speed, and minimal track distortion.
Showing all 4 results
-
-

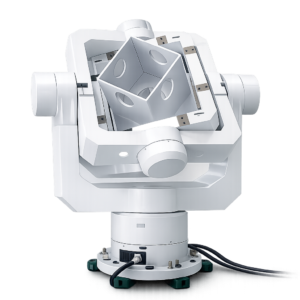

Series Three-Axis Turntable
- Load Capacity：5~150 kg(Custom Made)
- Table dimension：Φ30mm~Φ1500mm(Custom Made)
- Rate range: Inner Axis: ±0.001°/s ~ 1500°/s Middle Axis: ±0.001°/s ~ 1000°/s Outer Axis: ±0.001°/s ~ 500°/s
- Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
-

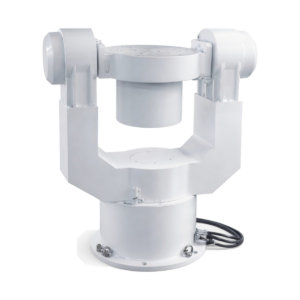

Series Two-Axis Turntable
- Load Capacity：5~150 kg(Custom Made)
- Table dimension：Φ30mm~Φ1500mm(Custom Made)
- Rate range: ±0.001° ~ 3000°/s
- Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
-
SWJK-A3-60 High-Precision Three-Axis Turntable
The SWJK-A3-60 is a high-precision three-axis motion simulation test system designed for inertial systems, inertial components, electro-optical payloads, and stabilized imaging platforms.
With precise three-axis motion control, servo simulation, and dynamic performance validation capabilities, the system provides a reliable test platform for aerospace, defense, research, and precision engineering applications.
