The S201A is a rugged 360° panoramic infrared detection system designed for wide-area passive surveillance, automatic target recognition, and continuous tracking. With a 1280×1024 uncooled thermal imager, 225°/s scanning speed, multi-target processing, and IP66 protection, it is ideal for border security, coastal monitoring, UAV detection, and perimeter protection.
Description

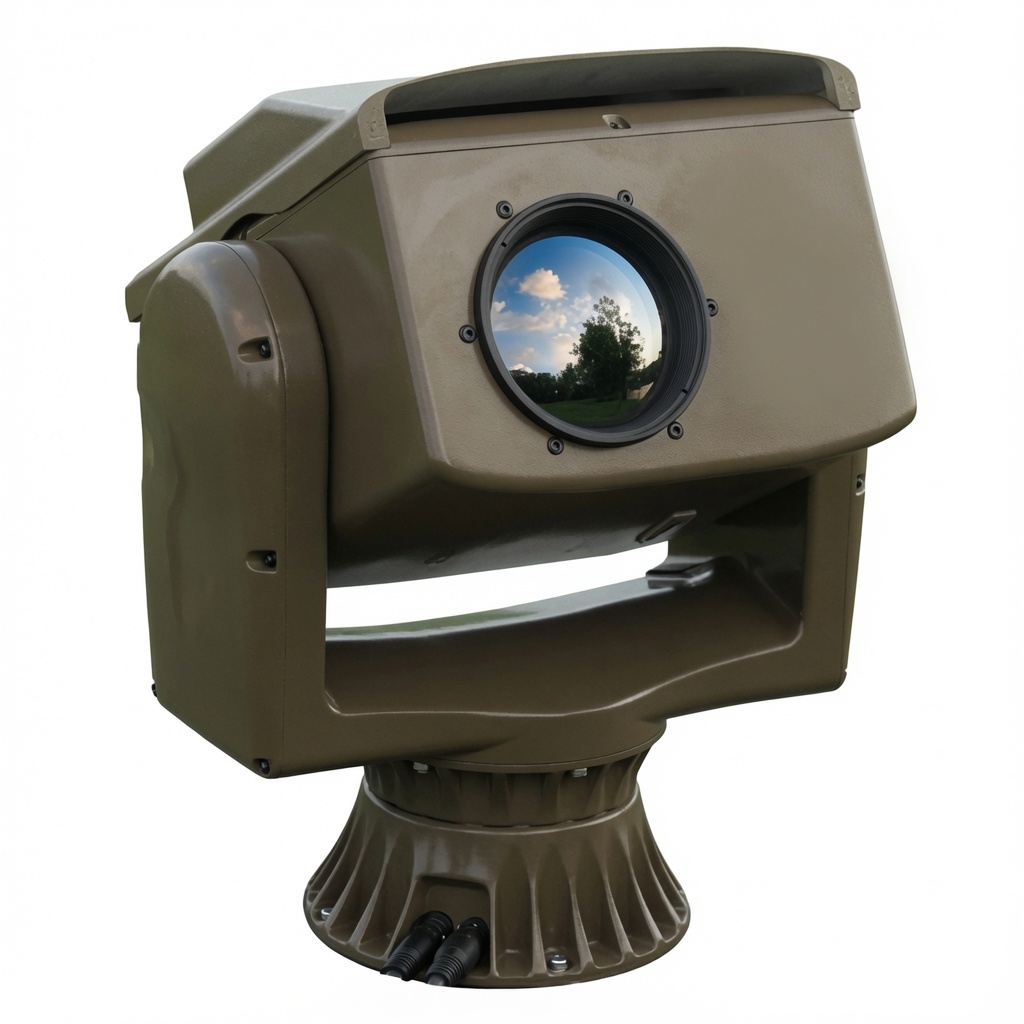

The SW-IRS201A is a panoramic infrared detection and tracking system designed for wide-area surveillance, automatic target detection, and continuous tracking. It integrates a high-resolution uncooled infrared thermal imager with a high-speed scanning and tracking platform, enabling 360° passive surveillance of aerial, ground, and surface targets.
With 360° panoramic warning, infrared imaging, automatic target recognition, multi-target processing, and rugged outdoor protection, the SW-IRS201A is suitable for border security, coastal monitoring, UAV detection, perimeter protection, mobile surveillance, and critical infrastructure security.
Key Features
360° Panoramic Infrared Surveillance
Provides continuous panoramic warning coverage with 360° azimuth scanning and a 12.7° elevation warning field of view.
Passive Thermal Detection
Uses infrared thermal imaging for passive target detection without active illumination, making it suitable for day, night, and low-visibility environments.
High-Resolution Infrared Imaging
Equipped with a 1280×1024 uncooled infrared detector and 55mm/F1.0 lens for long-range thermal observation.
High-Speed Warning Scan
Supports warning scan speed up to 225°/s, enabling rapid wide-area target discovery.
Automatic Target Recognition and Tracking
Supports automatic recognition and tracking of targets across air, surface, and ground scenarios.
Multi-Target Processing
Capable of processing ≥50 targets simultaneously, supporting complex surveillance environments.
Rugged Outdoor Deployment
With IP66 protection, wide operating temperature range, and 24-hour continuous operation capability, the system is suitable for fixed-site, vehicle-mounted, and field deployment.
Typical Applications
- Border and perimeter surveillance
- Coastal and maritime monitoring
- UAV detection and tracking
- Critical infrastructure protection
- Military base and industrial park security
- Airport, port, and power facility monitoring
- Mobile vehicle-mounted surveillance
- Long-range night-time security observation
- Air, ground, and surface target warning systems
