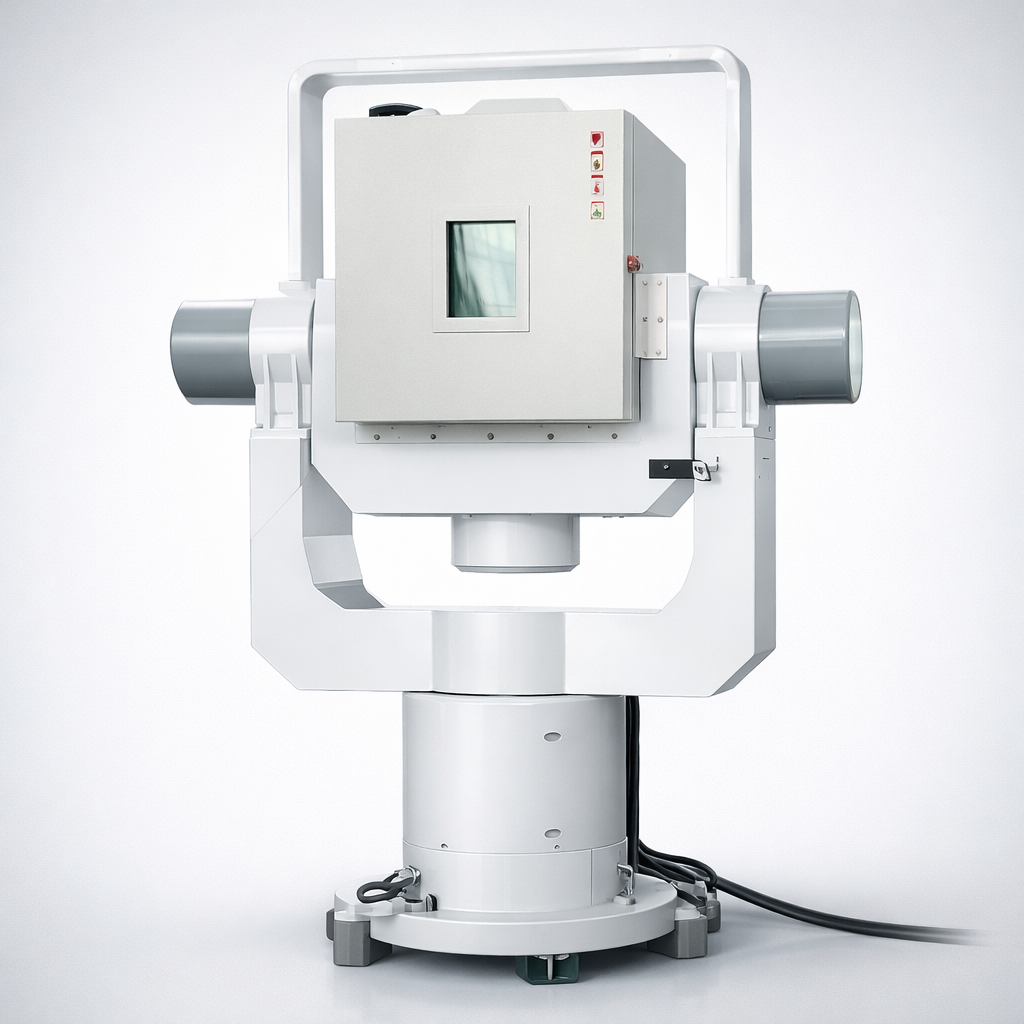

Series Three-Axis Turntable With Temperature Chamber

Series Three-Axis Turntable With Temperature Chamber

Load Capacity：5Kg~150 Kg(Custom Made)

Table dimension：Φ30mm~Φ1500mm(Custom Made)

Maximum acceleration: Inner axis 0~ 2000°/ s2, Middle axis  0~1000°/ s2  , Outer axis 0~150°/ s2

Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）

Temperature range： -60 ℃ ～ +150 ℃

Category:
Spread the love

Description

The Dual-Axis Temperature-Controlled Turntable is a two-axis U-T structured multi-functional test system designed for comprehensive simulation testing of inertial devices and systems.

It supports Position, Rate, Sway, and Thermal Testing functions, providing precise motion control and reliable performance across a wide temperature range. Powered by an industrial control computer, the system offers high positioning accuracy, excellent rate stability, and low waveform distortion.

Technical Specifications

Parameter Specification
Structure Type U-O-T
Load Capacity 5KG~150KG(Custom Made)
Payload Dimension Custom Made
Table Diameter Φ30 mm~Φ1500 mm
Table Flatness ≤ 0.02 mm
Magnetic Leakage ≤ 1 Gs (10 mm above the table surface)
Axis Intersection Inner & Middle Axis: within 0.25 mm radius sphere Outer & Middle Axis: within 0.5 mm radius sphere
Orthogonality Three-axis orthogonality ≤ ±2″
Rotation Accuracy ≤ ±2″ (peak-to-peak)
Position Locking All three axes can be locked at 0° and 90° positions
Rotation Range Continuous unlimited
Operating Modes Position, Rate, Sway
Slip Ring Customized according to user requirements

Static Performance

  • Angular Position Accuracy: ≤ ±1″
  • Angular Position Repeatability: ≤ 0.5″
  • Angular Position Resolution: 0.36″

Dynamic Performance

  • Rate Range: Inner Axis: 0.0001°/s ~ 3000°/s Middle Axis: 0.0001°/s ~ 1500°/s Outer Axis: 0.0001°/s ~ 1000°/s
  • Rate Resolution: 0.00001°/s
  • Rate Stability: 1×10⁻⁴ (1×10⁻³°/s ≤ ω < 1°/s) 1° average 1×10⁻⁵ (1°/s ≤ ω < 10°/s) 10° average 1×10⁻⁶ (ω ≥ 10°/s) 360° average
  • Rated Angular Acceleration (with load): Inner Axis: 0~2000°/s² Middle Axis: 0~1000°/s² Outer Axis: 0~150°/s²
  • -3dB Bandwidth: Inner: 30 Hz / Middle: 20 Hz / Outer: 25 Hz
  • Double-Ten Bandwidth (1° peak-to-peak): Inner: 9 Hz / Middle & Outer: 5 Hz

Sway Function

  • Amplitude: ±2° ~ ±45° (all axes)
  • Period: 2 s ~ 16 s (all axes)
  • Phase: Adjustable (all axes)

Key Features

  • Single-axis and multi-axis configurations available
  • Automatic frame-type structure
  • Position control, speed control, swing, and servo functions
  • High positioning accuracy
  • Stable rotational speed
  • Low track distortion
  • Industrial computer-based operation and control

Typical Applications

  • Inertial Navigation Systems (INS) and IMU testing
  • Gyroscope and accelerometer performance validation
  • Electro-optical pod and stabilized platform calibration
  • Missile guidance and avionics system qualification
  • Aerospace and defense inertial equipment R&D
  • Multi-axis motion simulation under extreme temperature conditions
