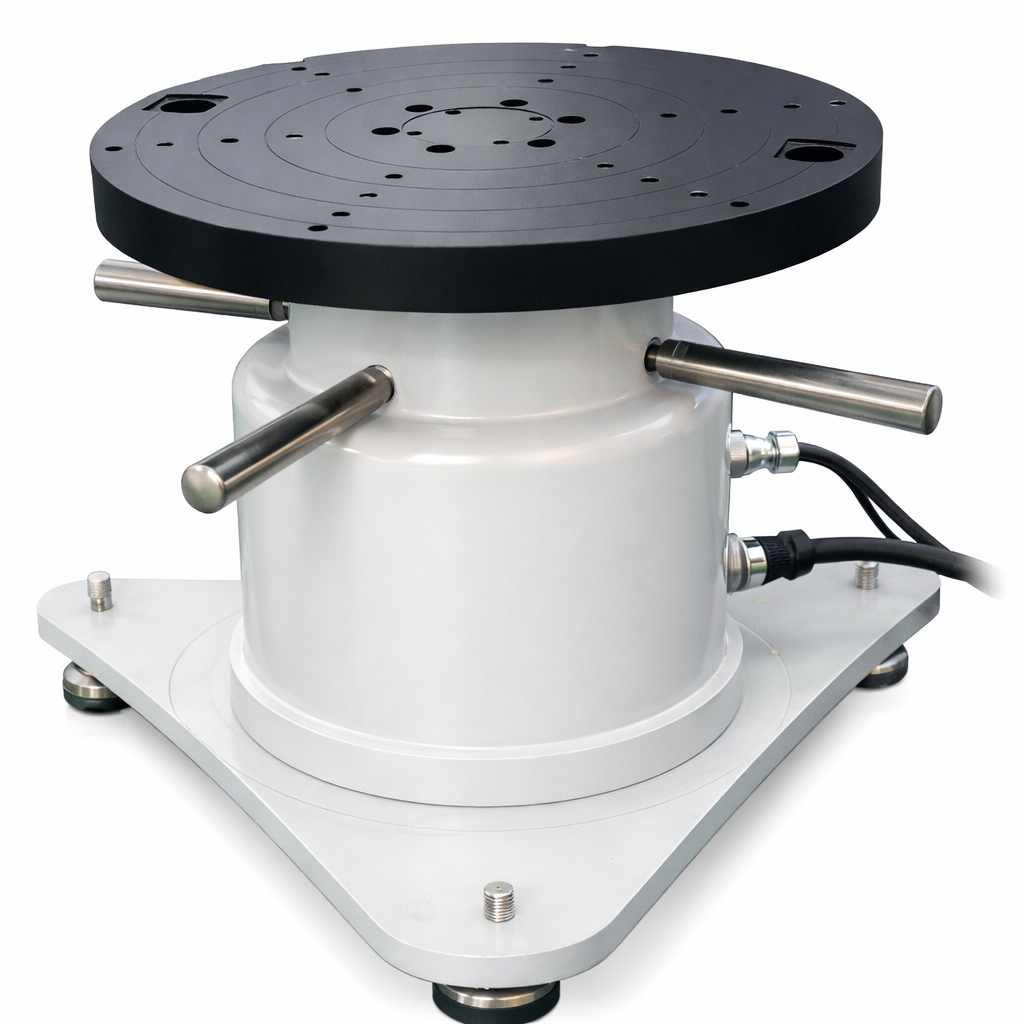

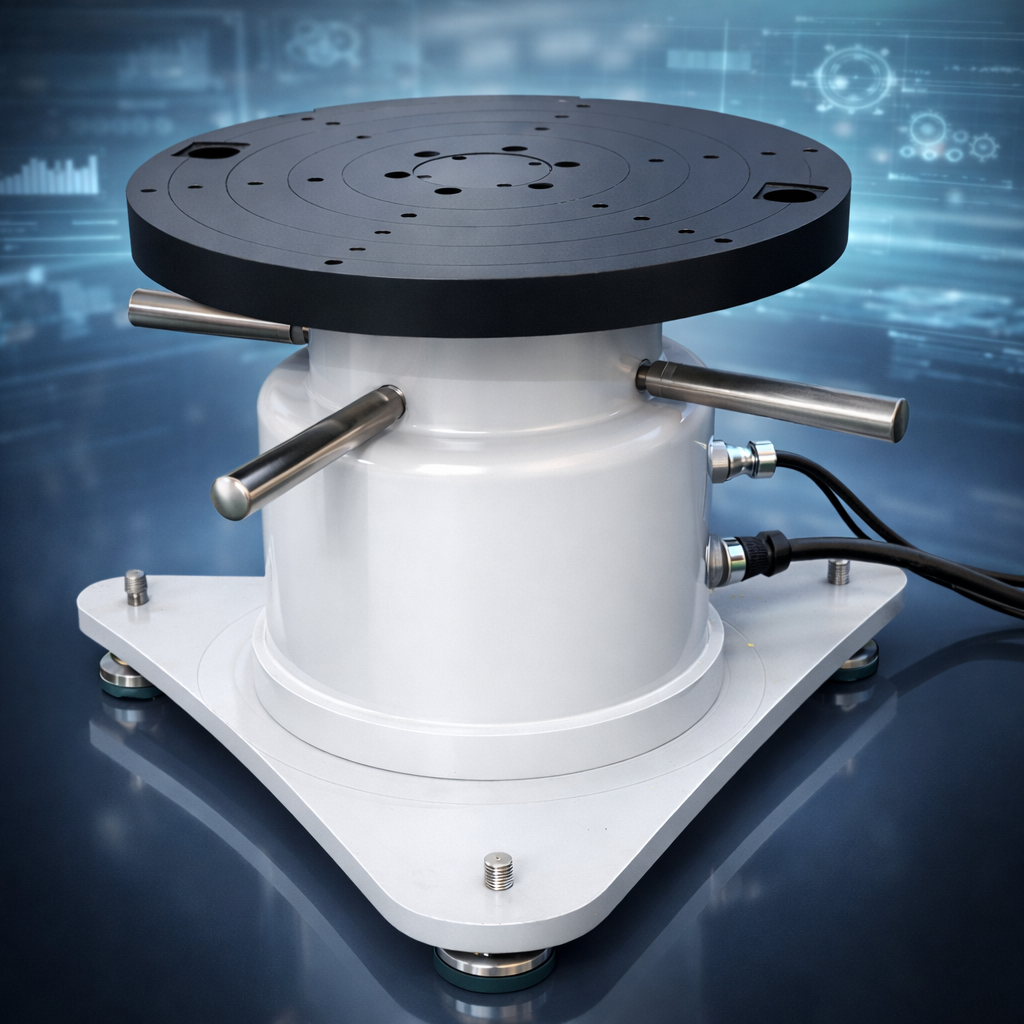

Series Single Axis Turntable
- Load Capacity：5~200 kg(Customizable)
- Table dimension：Φ30mm~Φ1500mm(Customizable)
- Rate range: ±0.001° ~ 3000°/s
- Rate accuracy and stability: 1×10–4（1°average）; 1×10–5（10°average）; 1×10–6（360°average）
Description
The Single-Axis Turntable is a single-axis platform-type multi-functional test equipment. It supports Position, Rate, and Sway modes, making it ideal for functional testing and validation of inertial systems and inertial components.
Equipped with an industrial control computer for motion control, the turntable delivers excellent dynamic performance, including high-precision positioning, superior rate stability, and minimal waveform distortion.
Key Features
- Multi-Functional Modes: Position, Rate, and Sway
- High Positioning Accuracy powered by industrial control computer
- Superior Rate Stability with low waveform distortion
- Continuous Unlimited Rotation
- Robust Platform Design ideal for inertial device testing
- Reliable Dynamic Performance for precise motion simulation
Applications
This turntable is suitable for functional testing, simulation, and experimental verification of inertial systems, navigation components, and related precision devices. It can be widely used in research, development, and performance evaluation applications.
Technical Advantages
With excellent dynamic characteristics, the system delivers precise positioning, smooth speed performance, and reliable operation under demanding test conditions. Its versatile design makes it a dependable platform for both standard testing and customized simulation requirements.
Specifications
| Parameter | Specification |
| Load Capacity | 0 ~ 200 kg |
| Table Diameter | Φ30 mm ~ Φ1500 mm |
| Table Flatness | 0.01 mm |
| Table Runout | 0.01 mm (at Φ400 mm) |
| Tilt Angle Rotation Error | ±1″ |
| Operating Modes | Position, Rate, Sway |
| Slip Ring | User-defined (customizable according to requirements) |
| Angular Position Accuracy | ±0.5″ |
| Angular Position Resolution | 0.36″ |
| Angular Position Repeatability | ±0.3″ |
| Rate Range | 0.001°/s ~ 4500°/s |
| Rate Accuracy & Stability | 1×10⁻⁴ (1° average) 1×10⁻⁵ (10° average) 1×10⁻⁶ (360° average) |
| Maximum Acceleration | 2000°/s² |
| Typical Loads | 30 kg, 40 kg, 45 kg, 60 kg |
