Description

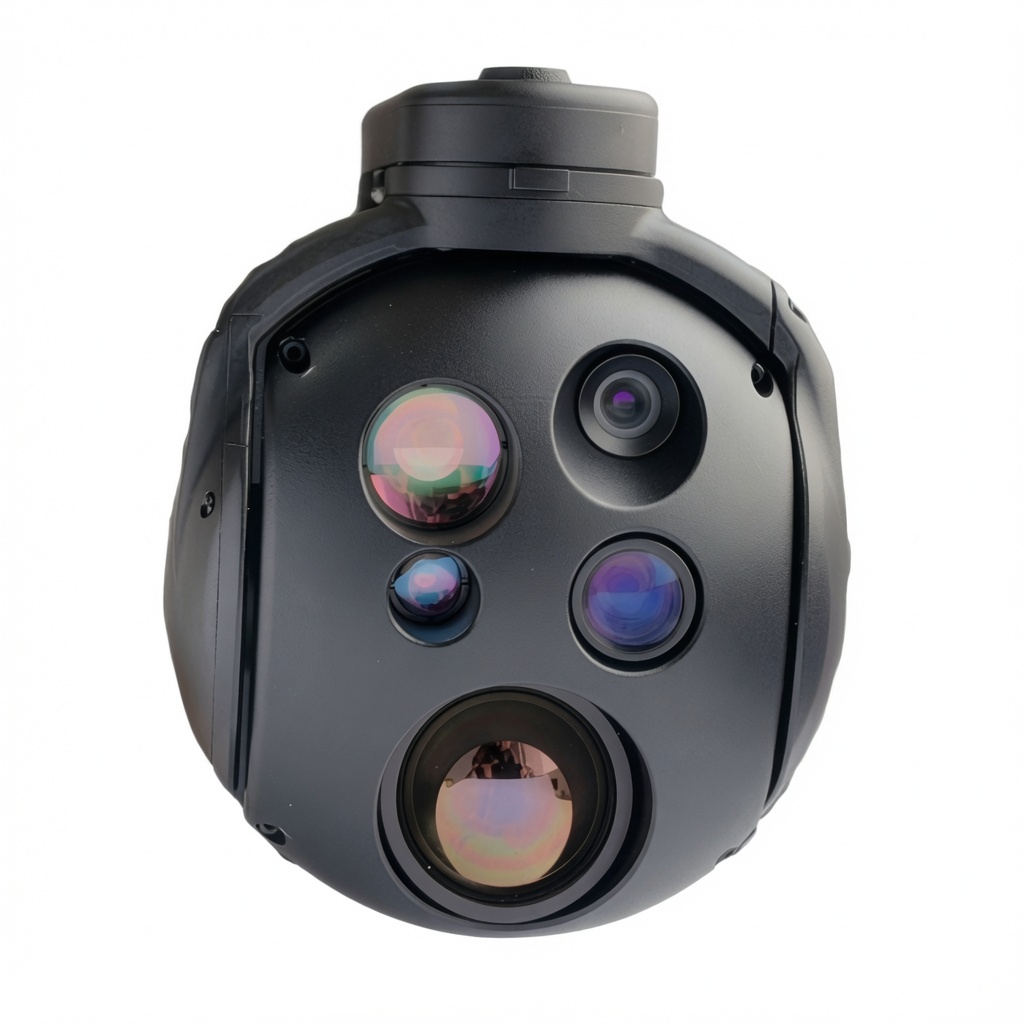

The T403 is a compact multi-sensor electro-optical gimbal payload designed for UAV-based surveillance, reconnaissance, target tracking, and distance measurement. It integrates an uncooled infrared thermal camera, wide-field visible camera, narrow-field visible camera, laser rangefinder, and intelligent target recognition module in a lightweight stabilized platform.

With day-and-night imaging, gyroscope stabilization, automatic target recognition, and precise laser ranging, the SW-EOIR403 provides reliable situational awareness for UAV, security, border patrol, emergency response, and industrial inspection applications.

Key Features

Compact Multi-Sensor Design
Integrates thermal imaging, dual visible cameras, laser ranging, and AI target recognition in a compact gimbal body.

Day & Night Observation
The infrared thermal camera enables target detection and tracking in low-light, night-time, smoke, haze, and complex environmental conditions.

Dual Visible Camera Configuration
The wide-field visible camera supports broad-area observation, while the narrow-field visible camera provides enhanced target detail and identification.

3km Laser Rangefinder
Built-in laser rangefinder supports target distance measurement from 15m to 3000m with ±2m accuracy.

AI Target Recognition & Tracking
Supports automatic recognition and tracking of vehicles and upright persons, improving mission efficiency and reducing operator workload.

Lightweight UAV Integration
With a weight of ≤580g, the payload is suitable for small and medium UAV platforms requiring compact EO/IR capability.

---

Typical Applications

• UAV surveillance and reconnaissance
• Border and perimeter security
• Law enforcement and public safety
• Search and rescue operations
• Maritime and coastal monitoring
• Power line, pipeline, and infrastructure inspection
• Emergency response and disaster assessment
• Target observation, tracking, and positioning

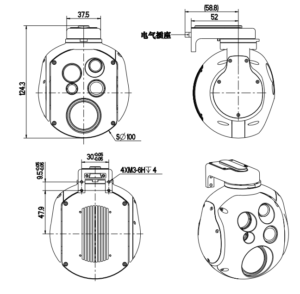

Dimension Drawing
